Raspberry 3

Last updated on 7 hours ago
B
BohunMember
Posted 18 days ago
So you see the Wanderer screen with drive icons. What could be causing my system to stop before loading Wanderer? (RPi 3b+)
J
Jeff1138Member
Posted 18 days ago
Hi,

Try another sd card, first one I tried gave errors and would not fully boot. SD cards are dodgy by nature.

Unlikely but a change of 5V 2A psu?

Should be noted I am not using a +, just to try another variant.
Edited by Jeff1138 on 01-08-2026 09:30, 18 days ago
amigamiaamigamiaAdmin
Posted 18 days ago
It's definitely not the mouse. Mouse works on my MacBook. What's strange is the mouse infrared light doesn't even come on on the RPi and I am using a wall PSU 5v 2500mA. Going to test the same mouse and KB on the RPi with a diff OS.

When I plug in a USB pen drive it detects it and it shows on the desktop but can't do anything with it since M/KB don't work
Edited by amigamia on 01-08-2026 17:55, 18 days ago
amigamia attached the following image:
img_20260801_114907215_hdr_ae.jpg img_20260801_114743607_ae.jpg
amigamiaamigamiaAdmin
Posted 18 days ago
More pics. Just to be clear, the mouse pointer does show up (not captured in this email) but it's on the top left corner of the screen.
Edited by amigamia on 01-08-2026 12:02, 18 days ago
amigamia attached the following image:
amigamiaamigamiaAdmin
Posted 18 days ago
Under batocera, the same mouse and KB work. Mouse even shows the infra light on now.
amigamia attached the following image:
D
deadwoodAROS Dev
Posted 18 days ago
@Everyone

I got word from Bo that he is looking for regression related to Mouse/Keyboard. Hopefully he will post in this thread when the issue is resolved.
N
ntromansVeteran Member
Posted 15 days ago
Just to report this does boot on my RPi Zero 2W, and fast - it takes about 6 s from power-up Smile Unfortunately as noted USB mouse and keyboard are not ercognised (I can however see a mouse pointer, but it's stuck top left corner of the screen). Still, it's great to see Wanderer up and running on a RPi!

Cheers,
Nigel.
CoolCat5000, pixie, Argo, amigamia, Bohun
B
bsekNewbie
Posted 13 days ago
Hi all,

If anyone could test last night's build on a Pi 3B or 3B+, I would be very grateful:

https://sourcefor...2/download

Ideally, I'd like you to test the following scenarios:

* Boot with both a mouse and keyboard connected.
* Boot with only a mouse connected.
* Boot with only a keyboard connected.
* Boot with neither connected, then hot-plug them after the system has booted.

And, if you know this, report if it is a low or full speed device.

- Bo
retrofaza, aha, Argo, mmartinka, A500Fan
J
Jeff1138Member
Posted 13 days ago
Hi,

Pi 3B v1.2 with 6th August

Both - keyboard popup appeared and keyboard works but no mouse popup at first but does are multiple removals/reinsertions and mouse now active and mouse cursor works.
Only mouse - like above no initial popup but popups work after removal/reinsertions - mouse works and cursor moves
Only keyboard - no initial popup but popups work after removal/reinsertions - keyboard works now
Neither - keyboard / mouse works after being plugged in with popups for each

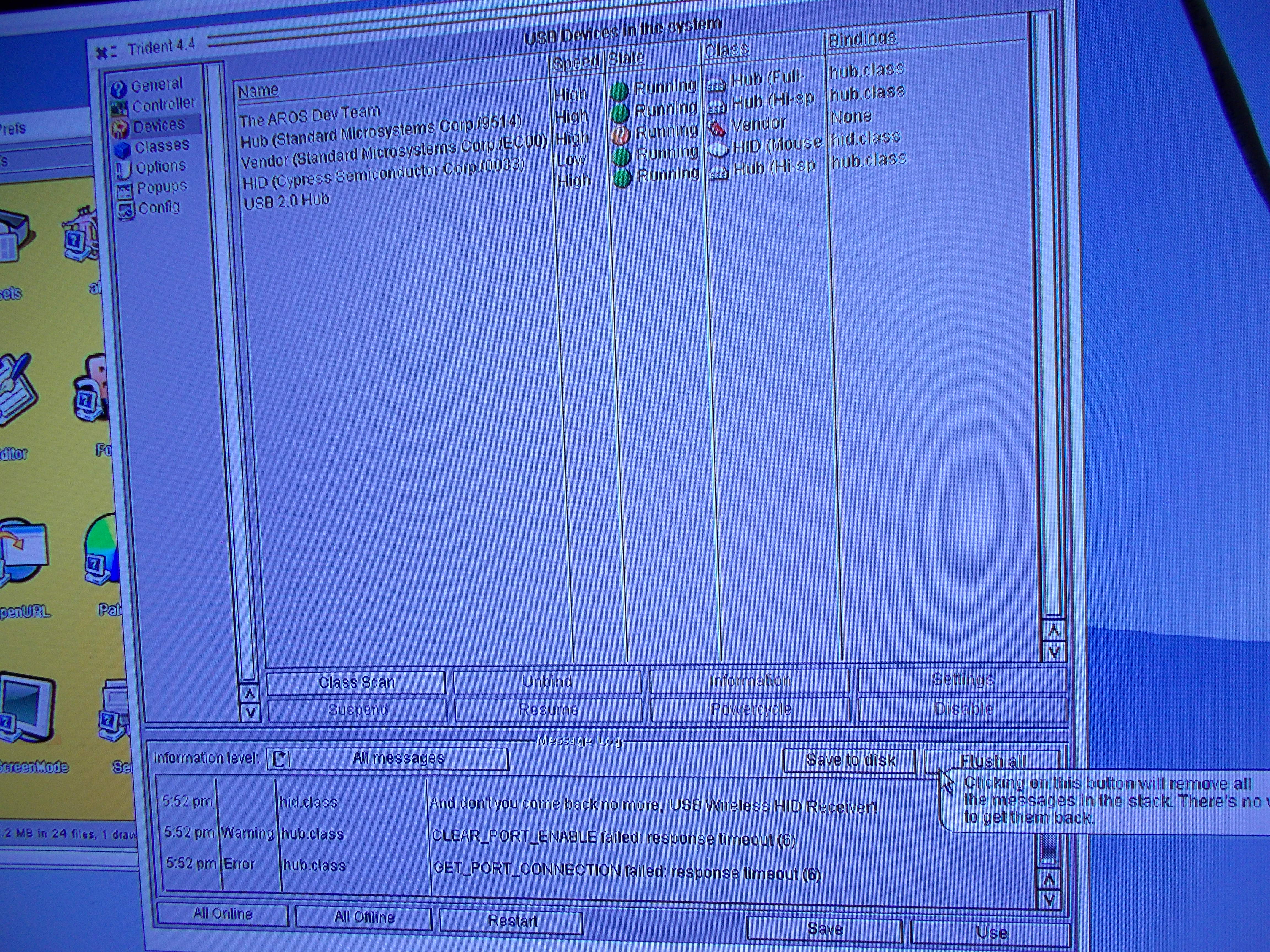

Think they are all low, and yes Trident shows them as low

FYi, HDMI and plugin audio works and VideoCore HDMI resolution can be changed
Edited by Jeff1138 on 08-08-2026 08:41, 11 days ago
Jeff1138 attached the following file:
usbdiaghub.zip [131.19kB / 29 Downloads]
usbdiaghubreinserted.zip [131.19kB / 34 Downloads]
Jeff1138 attached the following images:
amigamiaamigamiaAdmin
Posted 13 days ago
Some progress!! Here are my tests on a RPi 3B v 1.2 (not B+)

Quote

* Boot with both a mouse and keyboard connected.


Only mouse works. KB does not.

Quote

* Boot with only a mouse connected.


Mouse works!

Quote

* Boot with only a keyboard connected.


KB does not work

Quote

* Boot with neither connected, then hot-plug them after the system has booted.


Mouse works all the time. KB just refuses to work.

I have attached the error.log from Poseidon if it helps any.
amigamia attached the following file:
errors.zip [2.05kB / 37 Downloads]
pixiepixieMember
Posted 13 days ago
once it could be shared on youtube, it would be awesome so people could see how AROS runs in such a tiny system
B
bsekNewbie
Posted 12 days ago
Thanks for your feedback, much appreciated!

If you want, you can also try out the Wi-Fi driver. It's called bwfm.device (just select it from the list).
The setup should be the same as for any other Wi-Fi driver.

I guess there is no network software that makes it very useful though, but at least you can verify if you get an ip address or not.
CoolCat5000, mmartinka, Bohun, deadwood
B
BohunMember
Posted 10 days ago
In the latest build from August 9th, I found new .dbt files with the newer Raspberry Pi model numbers in their names, "4, 5, 500." Does this mean AROS will support the newer models?
B
BohunMember
Posted 10 days ago

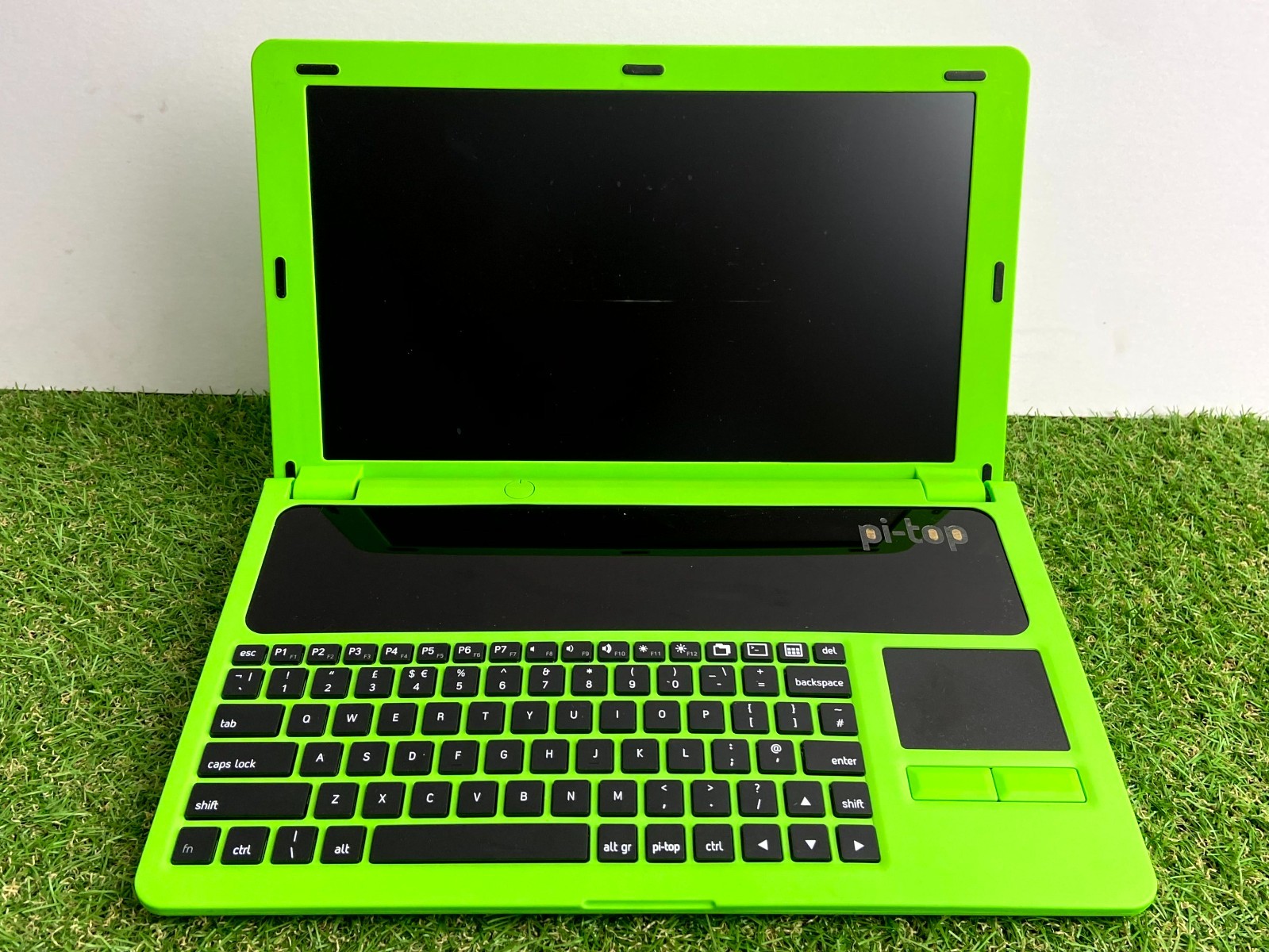

Do you think AROS will support this? I mean the touchpad, because I think the keyboard does?
https://ebay.io/m/bh49a3
It would be nice to have a laptop on the Pi
Bohun attached the following image:
B
BohunMember
Posted 10 days ago
My test results on the RPi 3B+, NB090826:
- I can see Wanderer and use system programs!! Smile)))
- To see the Wanderer screen with icons, I have to close two console windows
- The official Raspberry Pi mouse works fine, as does another, less proprietary mouse
- The official Raspberry Pi keyboard causes the mouse pointer to freeze after about 10 seconds of being plugged into the USB port, or about 10 seconds of clicking the mouse if the computer was started with the keyboard plugged in
- The official Apple keyboard works correctly

It's amazing that there's a working AROS on ARM Smile If only there were Hollywood, something would get written...
OlafSch, sonountaleban, A500Fan
O
OlafSchMember
Posted 10 days ago
if AROS really works on ARM contrib should be created too
sonountaleban, A500Fan
amigamiaamigamiaAdmin
Posted 10 days ago

Bohun wrote:

@Bohun - Do you think AROS will support this? I mean the touchpad, because I think the keyboard does?
https://ebay.io/m/bh49a3
It would be nice to have a laptop on the Pi

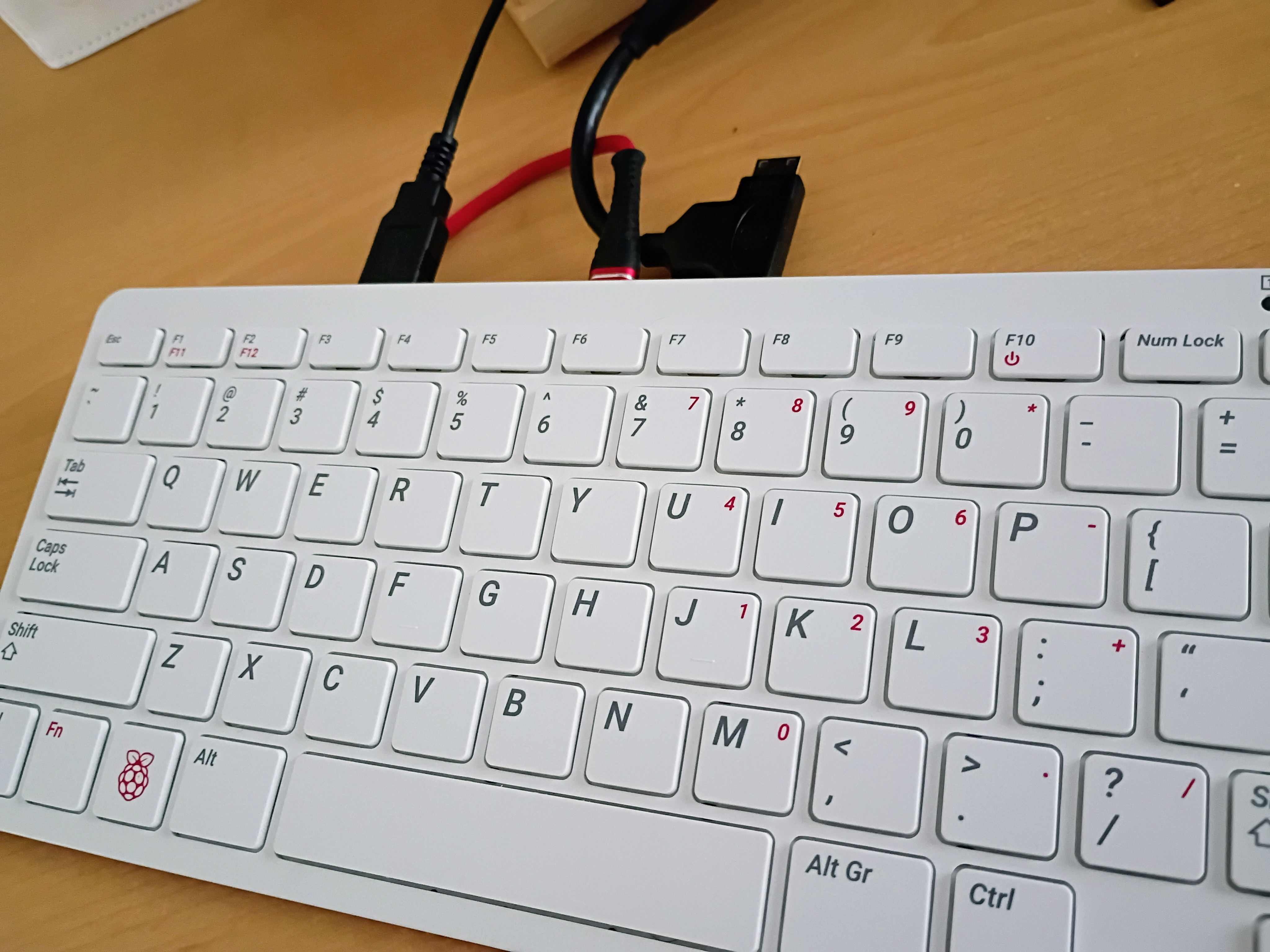

Well!!! how about the RPi 400? Wink but I'll let the amazing person who did most of the heavy lifting behind this...

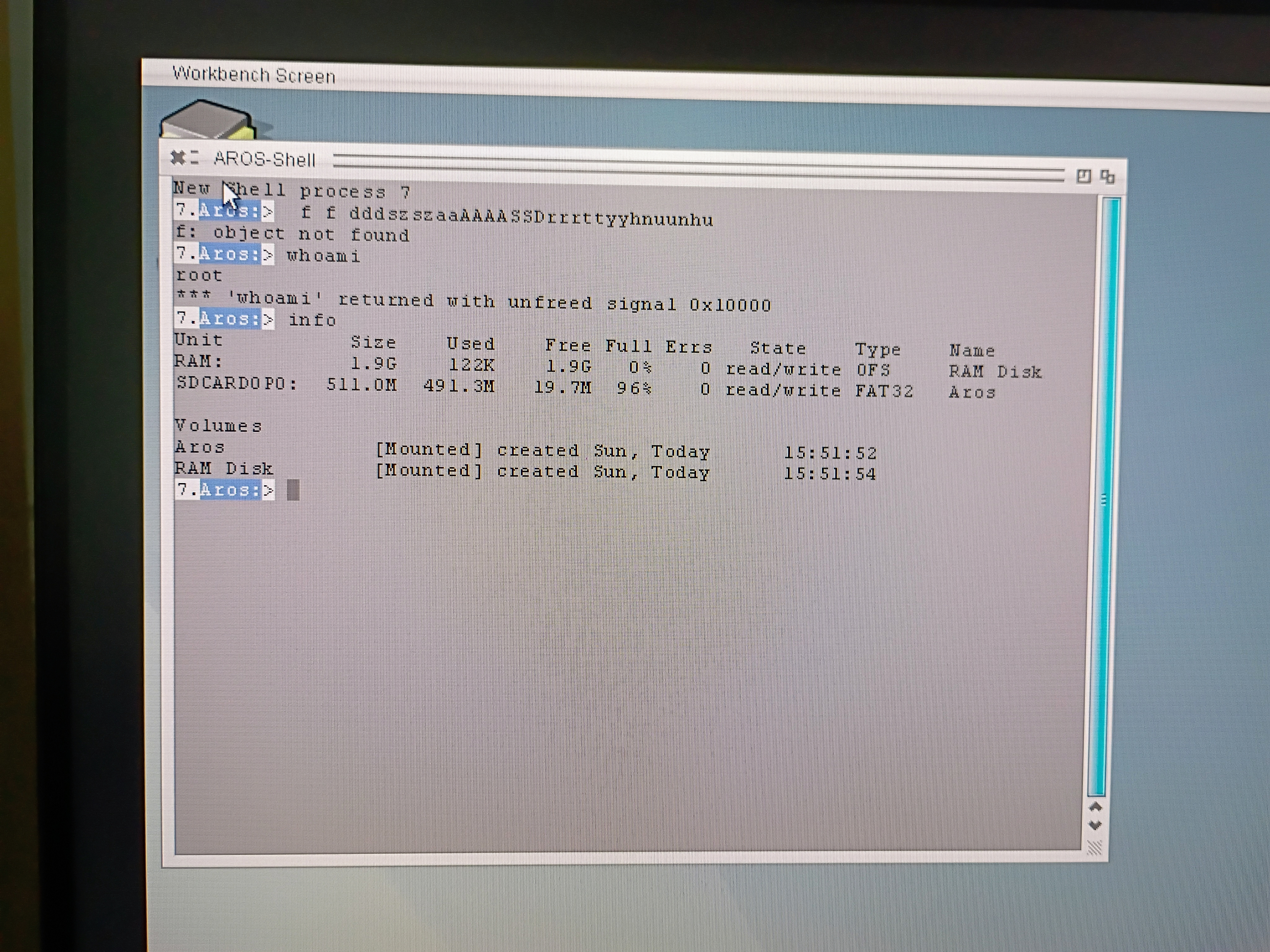

Just tested successfully working KB and Mouse on a 3B as well as a RPi 400. More news to come soon...
Edited by amigamia on 09-08-2026 17:21, 10 days ago
sonountaleban, OlafSch, Argo, Bohun
amigamia attached the following image:
img_20260809_170408802_ae.jpg img_20260809_170405331_ae.jpg
B
bsekNewbie
Posted 10 days ago
Hi,

Another developer, Jonx, has been working on Raspberry Pi 4 support, and it is now booting. Proper USB support should be ready in a couple of days.

There’s no audio, networking, or graphics driver support yet, apart from a framebuffer driver.

The plan is to make the port stable across the Pi 2–4, for both ARM and AArch64 with working networking, audio and 3D graphics.
If possible, Pi 5/500 support will follow after that.
OlafSch, sonountaleban, A500Fan, aha, Argo, retrofaza, Bohun, ntromans, deadwood
O
OlafSchMember
Posted 10 days ago
thanks a lot. Great news
B
BohunMember
Posted 10 days ago
@bsek
Incredibly good news! Thank you.
Can we also expect all the contributed programs, compiled for the Arm64 architecture?
